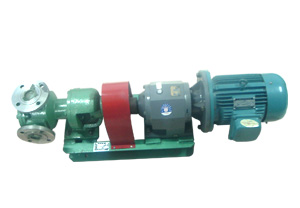

Overview

The pump used in the engagement principle, internal and external gear close to the side of a round, the other side was "crescent board" to separate, with the gear to the rotation, without the hardship of the phenomenon, advanced structures, small size, traffic flow, low noise, long life.

Applacation Scope

Apply to transport all kinds of light, volatile gases, until the heavy, viscous liquid, semi-solid or liquid. Widely used in petroleum, chemicals, oil, paint and other industries.

性能参数

NCB SERIES OF PUMP-CASSIA NOMAME

type	进出口径	流量m³/h	压力 MPa	吸入真空 MPa	转速 rpm	配用电机Motor		装配形式	重量kg	外形尺寸长×宽×高（mm）
type	进出口径	流量m³/h	压力 MPa	吸入真空 MPa	转速 rpm	型号 Model	功率 KW	装配形式	重量kg	外形尺寸长×宽×高（mm）
NCB1.2/0.3	G1"	1.2	0.3	0.03	500	Y90L-6	1.1	W-L	10	234×140×140
NCB1.8/0.3	G1 1/2"	1.8	0.3	0.03	500	Y100L-6	1.5	W-L	11	254×153×153
NCB3/0.3	G1 1/2"	3	0.3	0.03	700	Y100L-6	1.5	W-L	11	254×153×153
NCB6/0.5	φ40	6	0.5	0.05	500	Y100L2-4	3	W-L	70	700×370×300
NCB8/0.5	φ40	8	0.5	0.05	670	Y100L2-4	3	W-L	70	700×370×300
NCB12/0.5	φ50	12	0.5	0.05	290	Y132M1-6	4	W-L	140	800×550×420
NCB16/0.5		16			380	Y132M2-6	5.5	W-L
NCB20/0.5		20			460	Y132M-4	7.5	W-L
NCB12/0.7	φ80	12	0.7	0.08	220	Y160M-6	7.5	W-L	330	910×780×500
NCB18/0.7		18	0.7	0.08	310	Y160L-6	11	W-L
NCB24/0.5		24	0.5	0.08	420	Y160M-4	11	W-L
NCB30/0.5		30	0.5	0.08	520	Y160L-4	15	W-L
NCB40/0.5	φ125	40	0.5	0.08	230	Y200L1-6	18.5	W-L	750	1240×1022×610
NCB50/0.5		50			290	Y200L2-6	18.5	W-L
NCB60/0.5		60			350	Y200L2-6	22	W-L
NCB70/0.5		70			410	Y225M-6	30	W-L
NCB80/0.5		80			470	Y200L-4	30	W-L
NCB100/0.5	φ150	100	0.5	0.08	320	Y280S-6	45	W
NCB120/0.5	φ150	120	0.5	0.08	380	Y280M-6	55	W
