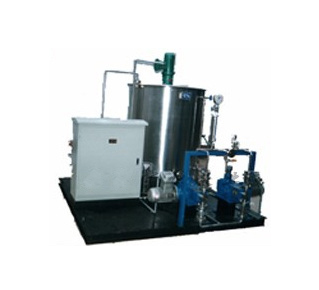

TYJY系列加药装置<单罐双泵加药装置>

1搅拌机
2溶液罐
3液位计
4安全阀
5放空阀
6管线支架
7计量泵
8溶液罐出口阀
9溶液罐排污阀
10进水管线阀 11过滤器 12加药管线
13压力表 14泵出口管线阀 15电控柜
16泵进口管线阀


规格型号
搅拌罐
容积m3
泵流量
L/h
泵压力
Mpa
电机功率
Kw
出口管线
直径mm
外形尺寸
L×B×Hmm
TYJY-1×0.25-16/1.0-2
0.25
16
1.0
0.55
DN15
1500×1000×1300
TYJY-1×0.5-32/2.4-2
0.5
32
2.4
0.55
DN20
1800×1200×1500
TYJY-1×1-48/1.0-2
1
48
1.0
0.55
DN20
2000×1200×2000
TYJY-1×1.5-125/0.8-2
1.5
125
0.8
0.55
DN25
2200×1600×2100
TYJY-1×2-310/2.0-2
2
310
2.0
1.1
DN25
2300×1600×2200
